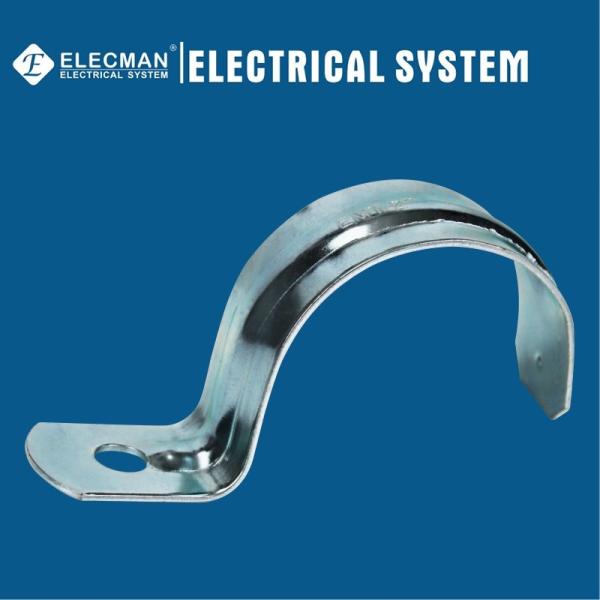

EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel

Brand Name : ELECMAN

Model Number : ESO

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Steel

Surface Finish : Zinc Plated

Type : One Hole Type

Size : 1/2 inch - 4 inch

Connection : Set Screw

Color : Sliver

Contact Now


ELECMAN ® EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel

Applications

ELECMAN® 2 in. one hole zinc plated steel EMT strap used to secure 2 inch EMT conduit. The strap includes a reinforcement rib and the hole is reinforced for extra strength. The strap snaps on to conduit for fast and easy installation. EMT straps are durable, easy to install and available in different sizes and materials.

Features

  • All stamped steel construction insures mechanical protection.
  • Sizes 1/2" - 2" snap on to a conduit allowing for easy positioning during installation before mounting.
  • All straps are zinc plated for corrosion protection.
  • Available in trade sizes 1/2 in. through 4 in.
  • Snap-on type for easy installation.
  • EMT one hole conduit strap design allows the installer to easily position the strap before mounting pipes on walls.


EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel
Certifications and Compliances

ELECMAN® Galvanized steel EMT conduit strap one hole type shall be produced to the following specification:

  • UL Listed
  • File No.: E513114


EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel

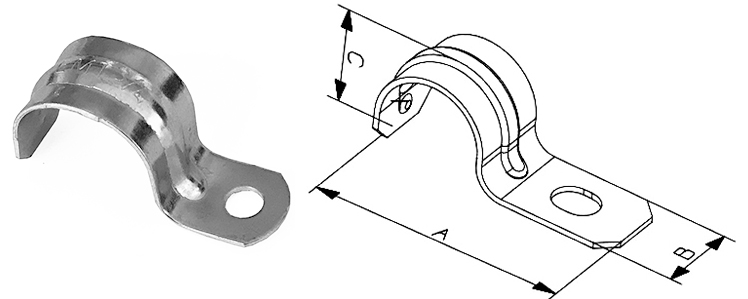

Specification Data

ELECMAN provides full size Galvanized steel EMT conduit strap one hole type from 1/2" to 4".

EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel

CAT #Trade SizeDIM A(inch)DIM B(inch)DIM C(inch)INNER PACKMASTER PACKWEIGHT/C
ESO0501/2"1.6570.5710.665500200013.70
ESO0753/4"1.9370.6460.933300120010.30
ESO1001"2.2760.7721.11017570011.50
ESO1251-1/4"2.8580.8781.480 4009.50
ESO1501-1/2"3.1261.0001.673 3008.50
ESO2002"3.9211.1382.020 2009.10
ESO2502-1/2"5.0121.1732.602 15014.50
ESO3003"5.3741.2153.291 708.30
ESO4004"6.8501.1574.177 507.50


EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
