Secure and Flexible Conduit Fittings Zinc Die Cast Straight Squeeze Connector for Cable Connections

Product Categories
Hefei Elecman Electrical Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Secure and Flexible Conduit Fittings Zinc Die Cast Straight Squeeze Connector for Cable Connections

Brand Name : ELECMAN

Model Number : SQS

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Zinc Die Cast

Surface Finish : Polishing

Type : Straight

Size : 1/2 in - 4 in

Connection : Male

Structure : Universal

Contact Now

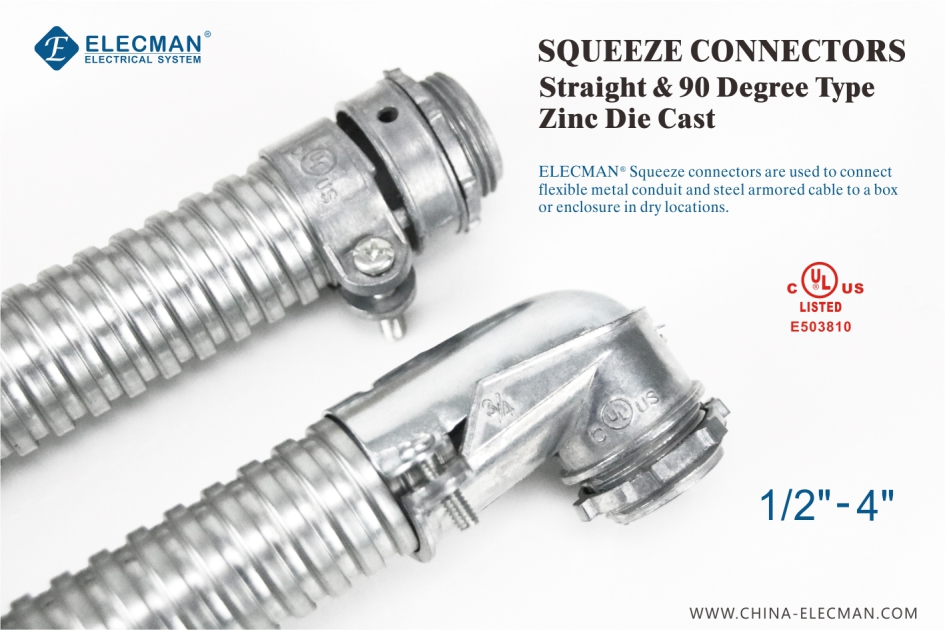

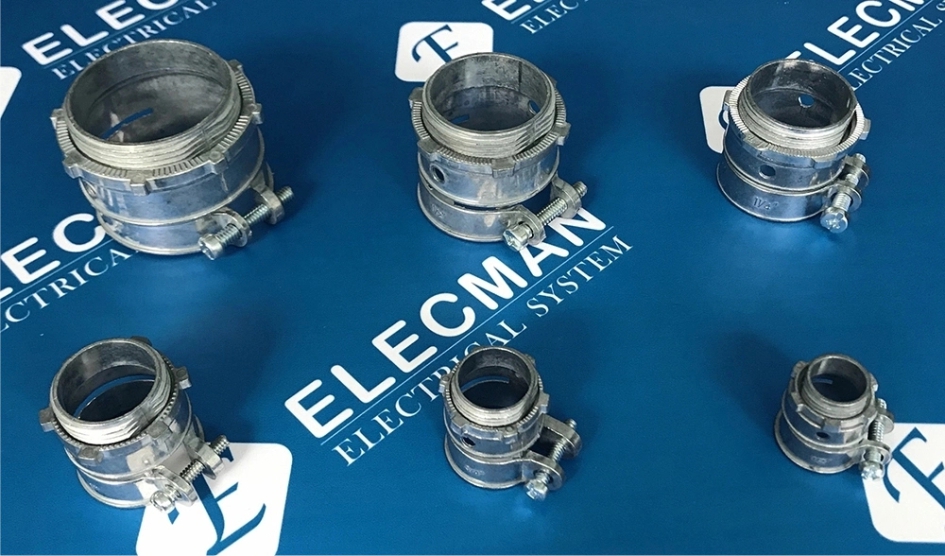

ELECMAN® Zinc Die Cast Straight Squeeze Connector Cable Connector

Applications

ELECMAN® Zinc straight squeeze connector is used to connect and effectively bond armored cable or flexible conduit to electrical box or other metal enclosures by screw connection. Zinc alloy body and locknut are high strength and non-corrosive. Reversible locknuts cuts through protective coating on boxes for ground continuity.

Features

  • Assembled with die cast locknut and tri-combo screws.
  • Insulated type are available.
  • Reversible locknuts cuts through protective coating on boxes for ground continuity.
  • Tri drive head is compatible with Phillips, slotted and square screwdrivers.
  • For indoor use only.
  • Zinc alloy body and locknut are high strength and non-corrosive.


Secure and Flexible Conduit Fittings Zinc Die Cast Straight Squeeze Connector for Cable Connections

Certifications and Compliances

ELECMAN® Zinc squeeze connector straight flexible conduit to box type shall be produced to the following specification:

  • UL Listed
  • File No.: E503810


Secure and Flexible Conduit Fittings Zinc Die Cast Straight Squeeze Connector for Cable Connections

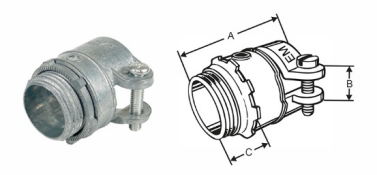

Specification Data

ELECMAN provides full size zinc squeeze connector straight flexible conduit to box type from 1/2" to 4".

Secure and Flexible Conduit Fittings Zinc Die Cast Straight Squeeze Connector for Cable Connections

CAT #Trade SizeDIM ADIM BDIM CINNER PACKMASTER PACKWEIGHT/C
SQS0501/2"1.460.74-0.950.410050012.50
SQS0753/4"1.580.88-1.110.41002009.00
SQS1001"1.751.13-1.390.545030015.00
SQS1251-1/4"1.911.42-1.660.64251009.00
SQS1501-1/2"2.091.68-1.940.752510011.00
SQS2002"2.352.08-2.560.751010014.00
SQS2502-1/2" -4015.00
SQS3003" -2513.00
SQS4004" -2017.00


Secure and Flexible Conduit Fittings Zinc Die Cast Straight Squeeze Connector for Cable Connections

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
