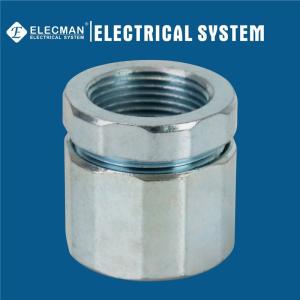

1 Inch Steel IMC Rigid Conduit Three Piece Coupling

  • 1
  • 2

Brand Name : ELECMAN

Model Number : TRC

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Steel

Surface Finish : Zinc Plated

Type : Three Pieces Type

Size : 1/2" - 6"

Connection : Threaded Connection

Color : Sliver

Contact Now


ELECMAN ® 1 Inch Steel IMC Rigid Conduit Three Piece Coupling

Applications

ELECMAN® 1 inch three piece couplings are used to connect 1 inch threaded rigid or IMC conduits that are not able to be turned. Three piece couplings provide concrete tight connections. Heavy gauge construction maintains mechanical protection and solid grounding of one conduit to another. Three piece couplings are zinc electroplated for excellent corrosion protection in damp locations.

Features

  • All malleable construction insures mechanical protection of the raceway.
  • Provide concrete-tight connection.
  • All components are zinc electro-plated for corrosion protection.
  • Hexagonal design allows for quick and easy installation.
  • Can be used for indoor or outdoor applications.
  • Available in a wide variety of sizes, fabricated from strong and resilient steel to suit multiple applications.


1 Inch Steel IMC Rigid Conduit Three Piece Coupling

Certifications and Compliances

ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:

  • UL Listed


1 Inch Steel IMC Rigid Conduit Three Piece Coupling

Specification Data

ELECMAN provides full size steel IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".

1 Inch Steel IMC Rigid Conduit Three Piece Coupling

CAT # Trade Size DIM A(inch) DIM B(inch) DIM C(inch) INNER PACK MASTER PACK
TPC050 1/2" 1.313 1.375 1.375 10 100
TPC075 3/4" 1.565 1.563 1.563 5 50
TPC100 1" 1.625 1.875 1.875 5 50
TPC125 1-1/4" 2.125 2.375 2.375 5 25
TPC150 1-1/2" 2.375 2.813 2.813 5 25
TPC200 2" 2.625 3.313 3.313 2 10
TPC250 2-1/2" 3.125 4.063 4.063 2 10
TPC300 3" 3.188 4.688 4.688 - 5
TPC350 3-1/2" 3.563 5.063 5.063 - 1
TPC400 4" 4.000 5.750 5.750 - 1
TPC500 5" 4.000 7.250 8.250 - 1
TPC600 6" 3.875 8.313 8.313 - 1


1 Inch Steel IMC Rigid Conduit Three Piece Coupling

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every parts of the coupling are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.

1 Inch Steel IMC Rigid Conduit Three Piece Coupling
