2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling

  • 1
  • 2

Brand Name : ELECMAN

Model Number : TRC

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Steel

Surface Finish : Zinc-Plated

Type : 3-Piece Type

Size : 1/2" to 6"

Connection : Threaded

Usage : Connect With IMC Rigid Conduit

Contact Now

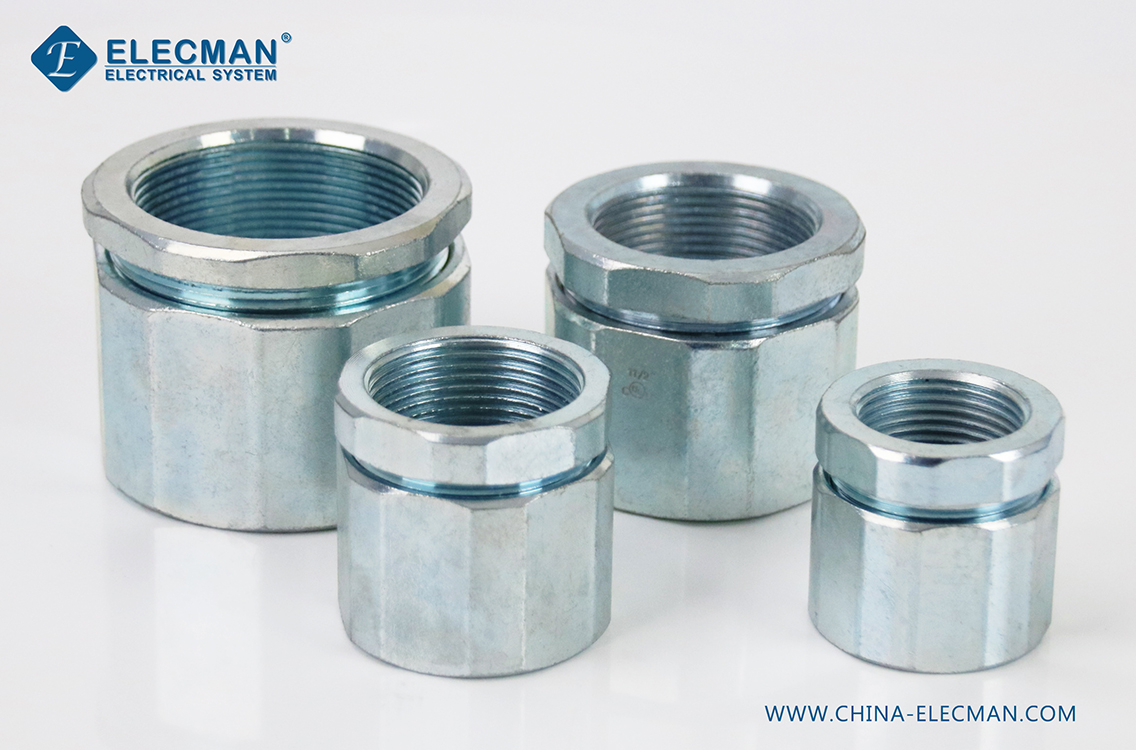

ELECMAN ® 2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling

Applications

ELECMAN® Steel three piece couplings are used to connect IMG/RSG conduits where neither threaded ends are not able to be rotated under confined spaces such as on ceilings or behind walls. Rigid couplings ensure mechanical protection and a secure connection of conduit. Sizes available from 1/2" to 6"; UL approved.

Features

  • All malleable construction insures mechanical protection of the raceway.
  • Provide concrete-tight connection.
  • All components are zinc electro-plated for corrosion protection.
  • Hexagonal design allows for quick and easy installation.
  • Can be used for indoor or outdoor applications.
  • Available in a wide variety of sizes, fabricated from strong and resilient steel to suit multiple applications.


2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling

Certifications and Compliances

ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:

  • UL Listed


2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling

Specification Data

ELECMAN provides full size steel IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".

2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling

CAT # Trade Size DIM A(inch) DIM B(inch) DIM C(inch) INNER PACK MASTER PACK
TPC050 1/2" 1.313 1.375 1.375 10 100
TPC075 3/4" 1.565 1.563 1.563 5 50
TPC100 1" 1.625 1.875 1.875 5 50
TPC125 1-1/4" 2.125 2.375 2.375 5 25
TPC150 1-1/2" 2.375 2.813 2.813 5 25
TPC200 2" 2.625 3.313 3.313 2 10
TPC250 2-1/2" 3.125 4.063 4.063 2 10
TPC300 3" 3.188 4.688 4.688 - 5
TPC350 3-1/2" 3.563 5.063 5.063 - 1
TPC400 4" 4.000 5.750 5.750 - 1
TPC500 5" 4.000 7.250 8.250 - 1
TPC600 6" 3.875 8.313 8.313 - 1


2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every parts of the coupling are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.
