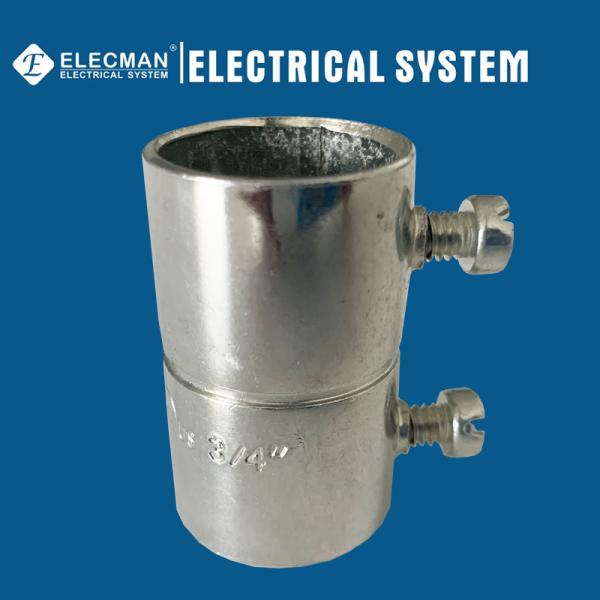

Steel EMT Coupling Set Screw Type 3/4 Inch

Brand Name : ELECMAN

Model Number : SCOP

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Carbon Steel

Surface Finish : Zinc Plated

Type : Set Screw Type

Size : 1/2" To 4"

Connection : EMT Conduit to EMT Conduit

Color : Sliver

Contact Now

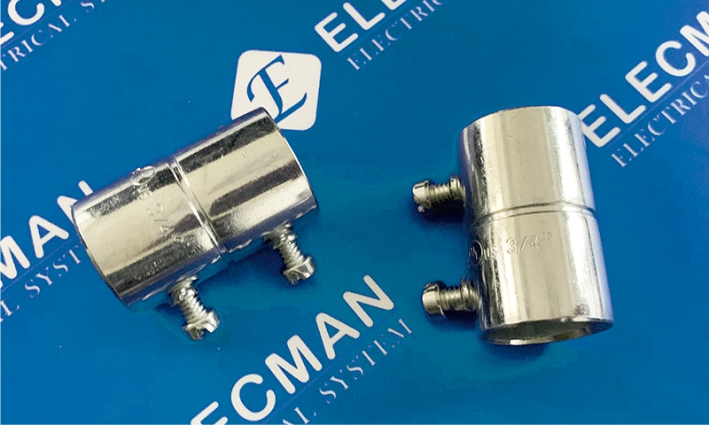

ELECMAN ® Steel EMT Coupling Set Screw Type 3/4 Inch

Applications

ELECMAN® Steel EMT couplings set screw type are used to connect the ends of two unthreaded EMT conduits together. EMT steel set-screw couplings provide concrete tight connections when taped. Additionally, these set-screw couplings eliminate the need to thread bald conduits to fit old threaded couplings. EMT steel couplings are steel and with zinc-plate surface for excellent corrosion protection in damp location.

Features

  • All steel construction insures mechanical protection for the raceway.
  • Provide concrete-tight connections when taped.
  • All components are zinc electro-plated for corrosion protection.
  • Designed for joining two lengths of EMT conduit.
  • Easy to use two screw installation (includes screws).
  • Suitable for applications above 600V.


Steel EMT Coupling Set Screw Type 3/4 Inch

Certifications and Compliances

ELECMAN® Steel EMT conduit couplings set screw EMT conduit to EMT conduit type shall be produced to the following specifications:

  • UL Listed
  • File No.: E513114


Steel EMT Coupling Set Screw Type 3/4 Inch

Specification Data

ELECMAN provides full size steel EMT conduit couplings set screw EMT conduit to EMT conduit type from 1/2" to 4".

Steel EMT Coupling Set Screw Type 3/4 Inch

CAT #Trade SizeDIM A(inch)DIM B(inch)INNER PACKMASTER PACKWEIGHT PER C
SCOP0501/2"0.8751.5665050018.40
SCOP0753/4"1.1301.8172525012.00
SCOP1001"1.1902.2545020018.02
SCOP1251-1/4"1.7502.0642510015.73
SCOP1501-1/2"2.0003.000101007.86
SCOP2002"2.4403.2505505.37
SCOP2502-1/2"3.1304.000-127.40
SCOP3003"3.7504.250-129.10
SCOP3503-1/2"4.2504.500-65.80
SCOP4004"4.7504.750-66.70


Steel EMT Coupling Set Screw Type 3/4 Inch

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.

Steel EMT Coupling Set Screw Type 3/4 Inch

Steel EMT Coupling Set Screw Type 3/4 Inch
