Steel EMT Connector Set Screw Type 2-1/2 In.

Brand Name : ELECMAN

Model Number : SCON

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Steel

Surface Finish : Zinc Plated

Type : Set Screw Type

Size : 1/2" - 4"

Color : Sliver

Application : Wire Protection

Contact Now

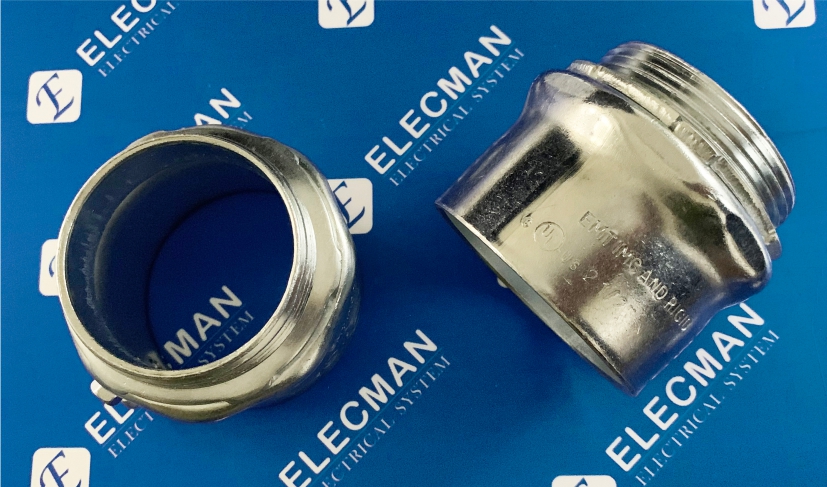

ELECMAN ® Steel EMT Connector Set Screw Type 2-1/2 in.

Applications

ELECMAN® Steel EMT set screw connectors of trade size 2-1/2", is perfect for joining EMT conduit to a box or enclosure. This concrete-tight connector features steel construction and zinc-plated finish. It measures 3.44-Inch Dia x 3.19-Inch. It has set screw to male NPS connection. Connector is UL listed, CSA certified and NEMA rated.

Features

  • All steel construction insures mechanical protection for the raceway.
  • Provide concrete-tight connections when taped.
  • Male hub treads NPS.
  • Insulated type are available.
  • All components are zinc electro-plated for corrosion protection.
  • Tri-head screws may be installed using a slotted, Phillips, or Robertson head screwdriver.
  • 2-1/2 in. to 4 in. trade sizes are also UL listed for use on Rigid/IMC conduit, allowing for design and installation flexibility.
  • 1/2 in. to 1 in. have one set screw, 1-1/4 in. to 4 in. have two set screws.


Steel EMT Connector Set Screw Type 2-1/2 In.

Certifications and Compliances

ELECMAN® Steel EMT connectors set screw type shall be produced to the following specifications:

  • UL Listed
  • File No.: E513114


Steel EMT Connector Set Screw Type 2-1/2 In.

Specification Data

ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".

Steel EMT Connector Set Screw Type 2-1/2 In.

CAT # Trade Size DIM A(inch) DIM B(inch) INNER PACK MASTER PACK WEIGHT PER C
SCON050 1/2" 0.880 1.445 50 500 19.50
SCON075 3/4" 1.130 1.504 25 250 13.00
SCON100 1" 1.380 1.753 50 200 17.08
SCON125 1-1/4" 1.380 2.310 25 100 15.94
SCON150 1-1/2" 2.750 2.250 10 100 7.26
SCON200 2" 2.000 2.380 5 50 4.91
SCON250 2-1/2" 3.440 3.190 - 12 6.50
SCON300 3" 3.130 3.810 - 12 8.30
SCON350 3-1/2" 4.750 4.310 - 6 5.00
SCON400 4" 4.250 4.880 - 6 5.78


Steel EMT Connector Set Screw Type 2-1/2 In.

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.

Steel EMT Connector Set Screw Type 2-1/2 In.

Steel EMT Connector Set Screw Type 2-1/2 In.
