1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type

  • 1
  • 2

Brand Name : ELECMAN

Model Number : SCON

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Steel

Surface Finish : Zinc Plated

Type : Set Screw Type

Size : 1/2" - 4"

Connection : EMT Conduit to Box

Color : Sliver

Contact Now

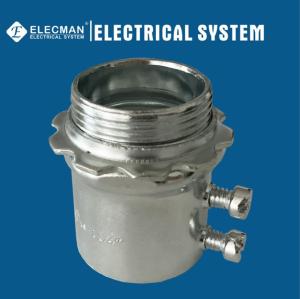

ELECMAN ® 1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non-Insulated Type

Applications

ELECMAN® 1/2" - 4" galvanized steel EMT pipe set screw connectors non-insulated type are meant to slide over the end of a piece of conduit on one side, and tighten down to the inside of a box or enclosure on the other end. You will almost always use both couplings and connectors in every conduit run together.

Features

  • All steel construction insures mechanical protection for the raceway.
  • Provide concrete-tight connections when taped.
  • Male hub treads NPS.
  • Insulated type are available.
  • All components are zinc electro-plated for corrosion protection.


1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type

Certifications and Compliances

ELECMAN® 1/2" - 4" galvanized steel EMT pipe set screw connectors non-insulated type shall be produced to the following specifications:

  • UL Listed
  • File No.: E513114


1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type

Specification Data

ELECMAN provides full size galvanized steel EMT pipe set screw connectors non-insulated type from 1/2" to 4".

1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type

CAT #Trade SizeDIM A(inch)DIM B(inch)INNER PACKMASTER PACKWEIGHT PER C
SCON0501/2"0.8801.4455050019.50
SCON0753/4"1.1301.5042525013.00
SCON1001"1.3801.7535020017.08
SCON1251-1/4"1.3802.3102510015.94
SCON1501-1/2"2.7502.250101007.26
SCON2002"2.0002.3805504.91
SCON2502-1/2"3.4403.190-126.50
SCON3003"3.1303.810-128.30
SCON3503-1/2"4.7504.310-65.00
SCON4004"4.2504.880-65.78


1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.

1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type

1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non Insulated Type
