Zinc Die Cast EMT Conduit Couplings Compression Type UL Listed

Name: Zinc Die Cast EMT Conduit Couplings Compression Type UL Listed
Brand: ELECMAN
Price: 1 USD

Quality Zinc Die Cast EMT Conduit Couplings Compression Type UL Listed wholesale

Brand Name : ELECMAN

Model Number : CCN

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Zinc Die Cast

Surface Finish : Natural

Type : Compression Type

Size : 1/2" to 4"

Connection : EMT Conduit to Box

Section Shape : Round

Contact Now

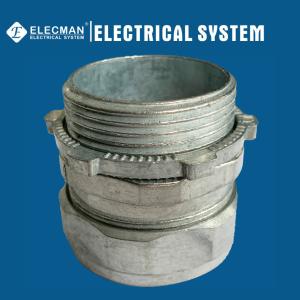

ELECMAN ® Zinc Die Cast EMT Conduit Couplings Compression Type UL Listed

Applications

ELECMAN® Zinc die cast EMT conduit couplings compression type is part of UL listed EMT fittings. A zinc EMT compression connector is used to connect EMT thin wall conduit pipe to a metallic outlet box or metal enclosure by tightening the compression nuts with channel locks. Elecman also produces EMT connectors compression type in steel. EMT compression connector is available in 1/2" through 4". Connector that sizes in 2-1/2", 3" and 4" can be also used for RMC and IMC conduits.

Features

Rugged metallic construction provides mechanical protection for the receway.
Provide concrete-tight connections when taped.
Male hub treads NPS.
Assembled with a die cast locknut.
Insulated type are available.

Certifications and Compliances

ELECMAN® Zinc die cast EMT conduit couplings compression type shall be produced to the following specifications:

UL Listed
File No.: E513114

Specification Data

ELECMAN provides full size Zinc die cast EMT conduit couplings compression type UL listed from 1/2" to 4".

CAT #	Trade Size	DIM A(inch)	DIM B(inch)	DIM C(inch)	INNER PACK	MASTER PACK	WEIGHT/C
CCN050	1/2"	1.250	1.250	0.420	100	500	14.50
CCN075	3/4"	1.330	1.330	0.420	100	500	22.50
CCN100	1"	1.500	1.500	0.530	50	200	15.50
CCN125	1-1/4"	1.660	1.660	0.625	25	125	14.90
CCN150	1-1/2"	1.880	1.880	0.620	20	100	15.00
CCN200	2"	2.000	2.000	0.680	10	50	11.40
CCN250	2-1/2"	2.620	2.620	0.850	-	25	-
CCN300	3"	2.760	2.760	1.010	-	20	-
CCN400	4"	2.760	2.760	1.000	-	10	-

Zinc Die Cast EMT Conduit Couplings Compression Type UL Listed

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
