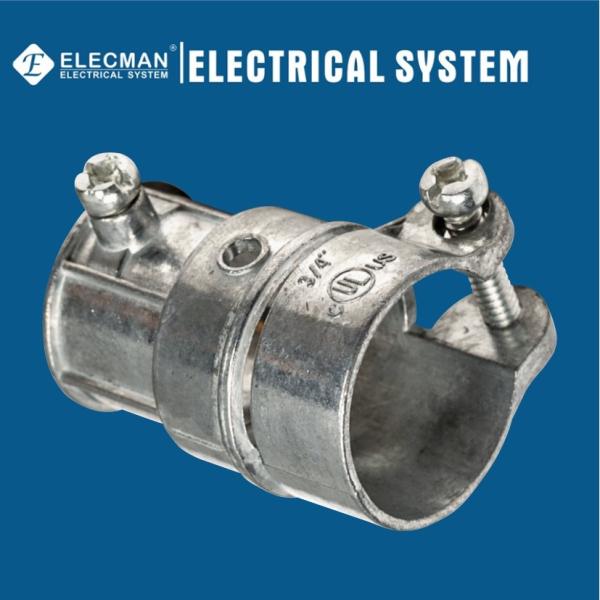

ELECMAN ® Zinc Die Cast 3/4" EMT to 3/4" FMC Combination Couplings Squeeze Type
Applications
ELECMAN® Zinc die cast 3/4" EMT to 3/4" FMC combination couplings feature squeeze type straight construction and are fabricated from naturally corrosion resistant and durable zinc die cast. Securely joins flexible metal conduit to EMT and in dry locations connects flexible metal conduit or armored cable to electrical boxes or enclosures. Single screw assembly in sizes 3/8" to 1", available for conduit sizes 1/2" to 1". The EMT to FMC transition coupling is UL certified. For use in dry locations only.
Features
- Die-cast zinc alloy body and nut.
- For indoor applications.
- Corrosion-resistant design.
- (set screw)EMT to (one screw squeeze)FMC.
- Assembled with tri-combo screws.
Certifications and Compliances
ELECMAN® Zinc die cast 3/4" EMT to 3/4" FMC combination couplings squeeze type shall be produced to the following specification:
- UL Listed
- File No.: E503810
Specification Data
ELECMAN provides full size zinc die cast EMT to FMC combination couplings squeeze type from 1/2"EMT-3/8"FMC to 1"EMT-1"FMC.
| CAT # |
Trade Size |
| EFT038 |
1/2"EMT - 3/8"FMC |
| EFT050 |
1/2"EMT - 1/2"FMC |
| EFT075 |
3/4"EMT - 3/4"FMC |
| EFT100 |
1"EMT - 1"FMC |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2"EMT - 3/8"FMC to 1"EMT - 1"FMC, ELECMAN provides inner box packing inside the outer box.
