IMC Conduit Three Piece Steel 1 Inch Rigid Coupling Threaded Connection

  • 1
  • 2

Brand Name : ELECMAN

Model Number : TRC

Certification : UL

Place of Origin : China

MOQ : 100 Pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs/Day

Delivery Time : 30 Days

Packaging Details : Packed in Carton Boxes

Material : Steel

Surface Finish : Zinc Plated

Type : Three Pieces Type

Size : 1/2" - 6"

Connection : Threaded Connection

Color : Sliver

Contact Now

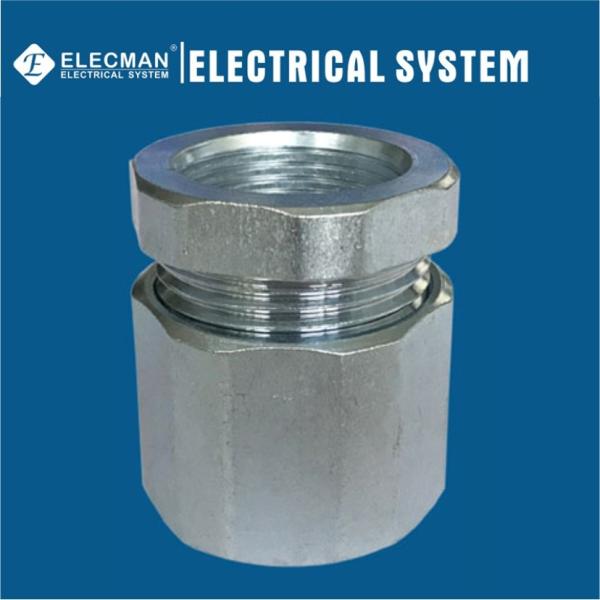

ELECMAN ® Steel IMC/Rigid Conduit Three Pieces Coupling Threaded Connection

Applications

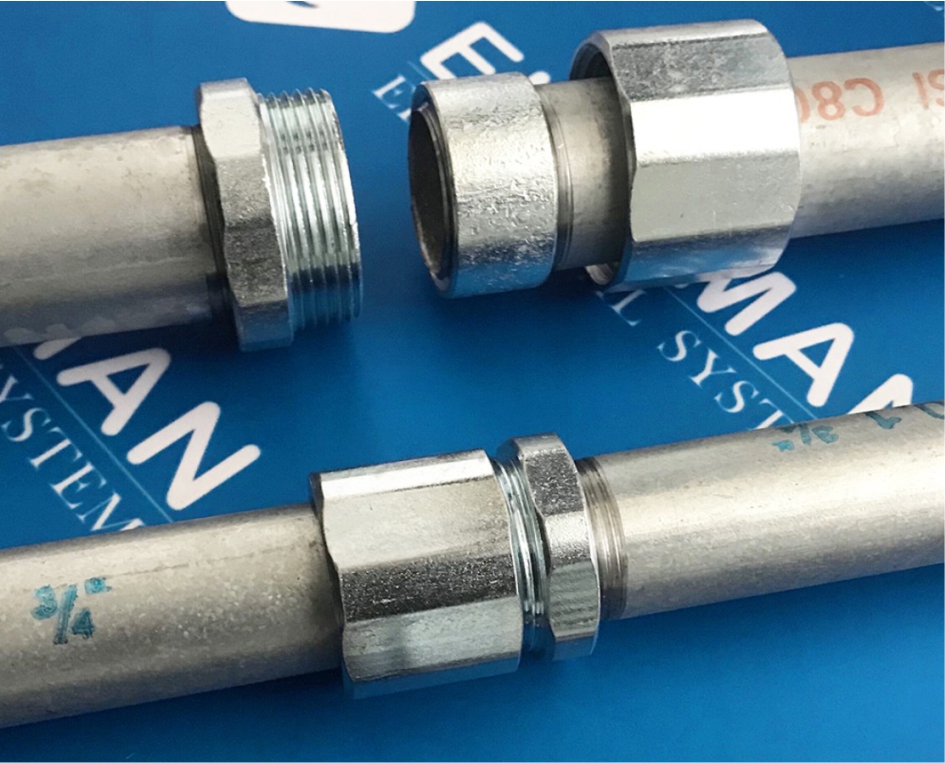

ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection are used to couple the two ends of IMC/Rigid when the conduit can not be turned.

Features

  • All malleable construction insures mechanical protection of the raceway.
  • Provide concrete-tight connection.
  • All components are zinc electro-plated for corrosion protection.
  • Hexagonal design allows for quick and easy installation.
  • Can be used for indoor or outdoor applications.
  • Available in a wide variety of sizes, fabricated from strong and resilient steel to suit multiple applications.


Certifications and Compliances

ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:

  • UL Listed


IMC Conduit Three Piece Steel 1 Inch Rigid Coupling Threaded Connection

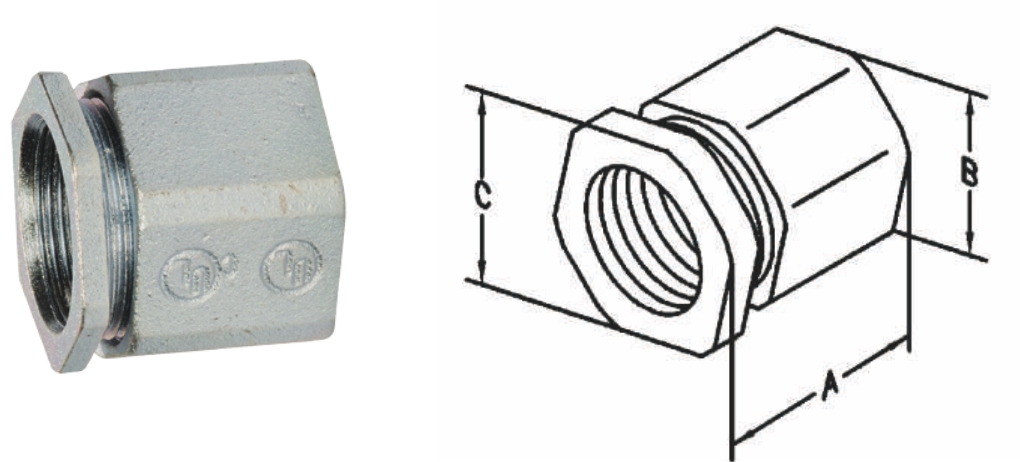

Specification Data

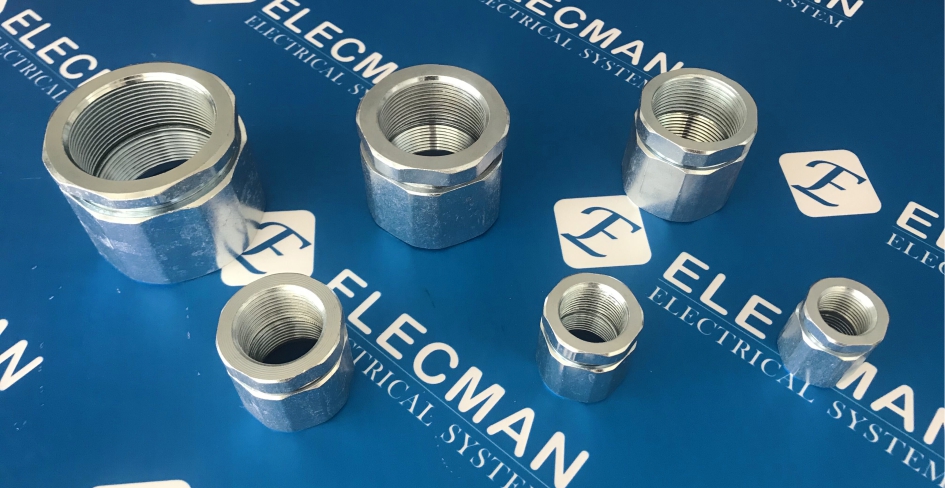

ELECMAN provides full size steel IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".

IMC Conduit Three Piece Steel 1 Inch Rigid Coupling Threaded Connection

CAT #Trade SizeDIM A(inch)DIM B(inch)DIM C(inch)INNER PACKMASTER PACK
TPC0501/2"1.3131.3751.37510100
TPC0753/4"1.5651.5631.563550
TPC1001"1.6251.8751.875550
TPC1251-1/4"2.1252.3752.375525
TPC1501-1/2"2.3752.8132.813525
TPC2002"2.6253.3133.313210
TPC2502-1/2"3.1254.0634.063210
TPC3003"3.1884.6884.688-5
TPC3503-1/2"3.5635.0635.063-1
TPC4004"4.0005.7505.750-1
TPC5005"4.0007.2508.250-1
TPC6006"3.8758.3138.313-1


IMC Conduit Three Piece Steel 1 Inch Rigid Coupling Threaded Connection

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every parts of the coupling are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.

IMC Conduit Three Piece Steel 1 Inch Rigid Coupling Threaded Connection
