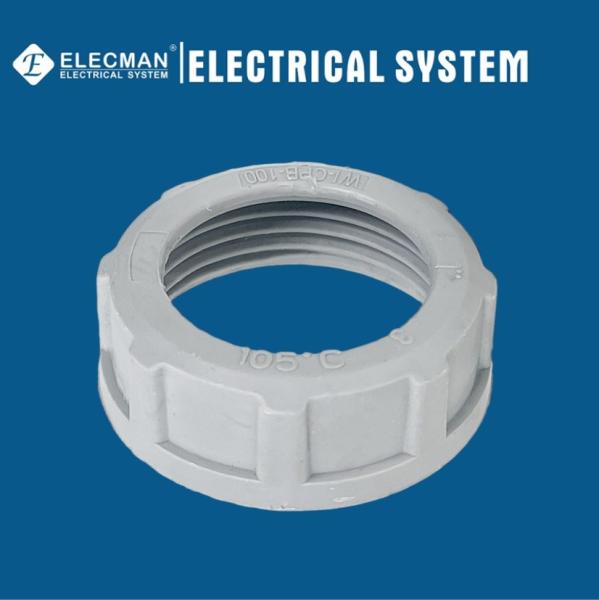

ELECMAN ® Thermoplastic Insulated IMC/Rigid Conduit Bushing Threaded Connection
Applications
ELECMAN® Thermoplastic insulated IMC/Rigid conduit bushings threaded connection are used on the end of IMC/Rigid conduit or on the end of the threaded connectors to protect wires and cables.
Features
- Provide better protection for wire/cable when installation.
- Rated flame retardant to 105°C.
- Indoor or outdoor use.
Certifications and Compliances
ELECMAN® Thermoplastic insulated IMC/Rigid conduit bushings threaded connection shall be produced to the following specification:
- UL Listed
- File No.: E503810
Specification Data
ELECMAN provides full size insulated IMC/Rigid conduit bushings from 1/2" to 4".
| Cat. # |
Trade Size |
| PRB050 |
1/2" |
| PRB075 |
3/4" |
| PRB100 |
1" |
| PRB125 |
1-1/4" |
| PRB150 |
1-1/2" |
| PRB200 |
2" |
| PRB250 |
2-1/2" |
| PRB300 |
3" |
| PRB350 |
3-1/2" |
| PRB400 |
4" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the bushing body is made of high quality thermoplastic, every parts of the bushing are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
